Description:
Product name: Copolymer coated steel tape for cable armouring
Base material: Tin free steel (ECCS)
Coating: copolymer
DIMENSION SPECIFICATION:
Copolymer : 0.050 mm +/ 0.005 mm EAA ( Ethylene Acrylic Acid)
Steel: 0.150 mm +/ 0.010 mm ECCS ( Electrolytic Chrome Coated Steel)
Copolymer : 0.050 mm +/ 0.005 mm EAA ( Ethylene Acrylic Acid)
Width: 32 mm
Length: 2200~2400 meters per roll
Color : Green
Core ID: 150 mm, made of steel
Q’ty: 20 MT/ cont
PHYSICAL PROPERTIES
Tensile Strength: 310 Mpa min.
Elongation: 20 % min.
Peel Strength: 6.13 N/cm min.
Heat Seal Strength: 17.5 N/cm min.
Product photos:
Technical data for copolymer coated steel tape:
| MILL TEST REPORT |
| Name . Specification of Test Sample | | COPOLYMER COATED STEEL TAPE 50/155/50 |
| ITEM | Width (mm) | 610 mm | Roll NO. K130112-5 |
| | Length (meter) | / | |
| | Standards and Norm | YD/T723.3-2007 |
| NO | Property | Units | Typical vaule | Results | Test method |
| 1 | Steel Tape Thickness | mm | 0.15 | 0.15 | ASTM A623M |
| | Copolymer coating | mm | 0.05 | 0.05 | |
| | Total | mm | 0.25 | 0.25 | |
| 2 | Color | | Green | Green | |
| 3 | Tensile Strength | Mpa | min 300 | 345 | ASTM B736 |
| 4 | Elongation | % | min 15 | 28 | |
| 5 | Peel strength of Water Resistance | N/cm | min 6.13 | 6.35 | ASTM B736 |
| | 68±1°C,168 h | | | | |
| 6 | Filler/Flooding Resistance | | No delamination | No delamination | REA PE-39, PE-89 |
| | 68±1°C,168 h | | | | |
| 7 | Heat seal strength | N/cm | min 17.5 | 18.5 | ASTM B736 |
| 8 | Dielectric strength (DC2KV 1 min) | | Without breakdown | No break | |
| 9 | Corrosion Resistance | Grade | min 7 | 7 | ASTM A657 |
| | 0.1mol/L HCL 480 h | | | | |
| 10 | Core ID | mm | 150 | 150 | |
| Result: PASS |
Material for copolymer coated steel tape:
Steel: Usually the material is Tin Free Steel.
We can also use other material as you request
Thickness: 0.11mm, 0.13mm, 0.15mm etc..
Film material: POE, LLDPE, LDPE, PE, EVA, ABS, EAA, etc..
Thickness: 0.05mm, 0.04mm, 0.03mm
Application for copolymer coated steel tape:
1. Copolymer coated steel tape is widely used in shielding for telecommunication cables, power cables and fibre optical cables;
2. Good insulativity and shielding effectiveness to reduce return loss, complying with RoHS standard, which make it widely used in coaxial cable, local area network cable, and as shielding layer of many other cables;
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

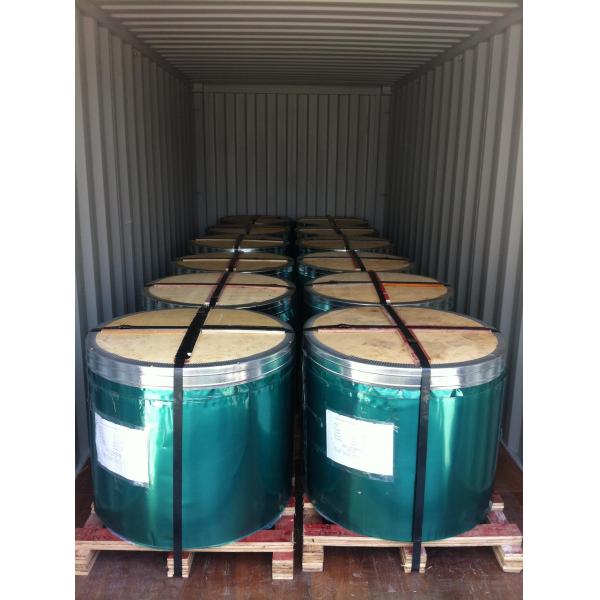

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
